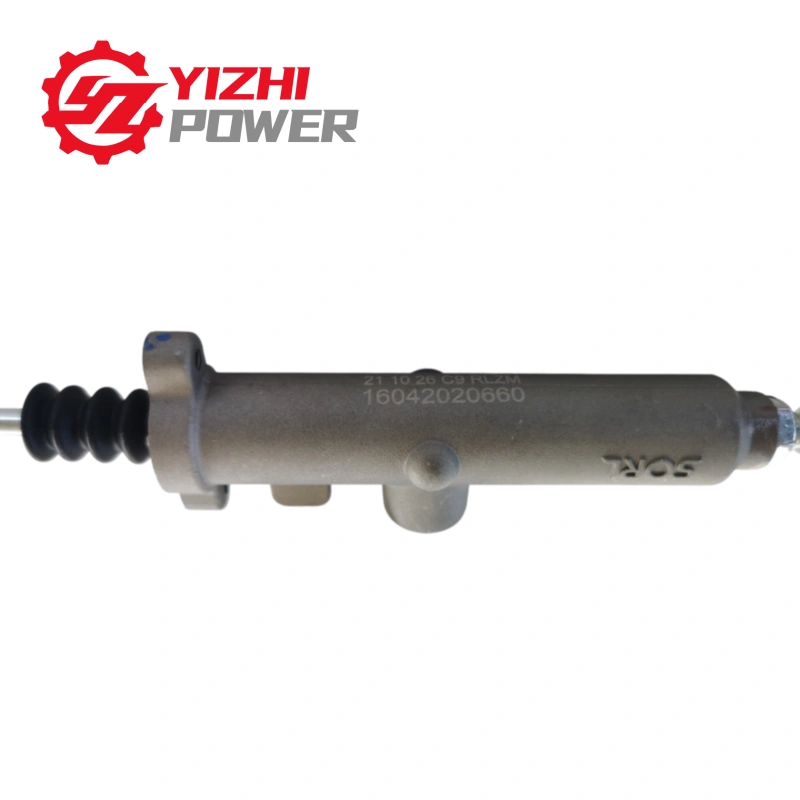

The FAW 1602110A70A clutch master cylinder assembly is an essential transmission component built for FAW commercial heavy-duty trucks. Manufactured under original OEM specifications, this genuine cylinder triggers the hydraulic pressure needed for clean gear shifts during long-haul trips and frequent stop-and-go driving.
⚙️ Reliable Hydraulic Control for Heavy-Duty Diesels
Maintaining consistent hydraulic pressure is vital to preventing shifting difficulties and transmission wear. The 1602110A70A clutch master cylinder delivers dependable performance:
- Smooth Pedal Response: Transfers driver pedal input accurately into the hydraulic lines for consistent clutch operation.
- Leak-Resistant Seals: Durable internal piston seals prevent fluid bypass and maintain pressure under continuous use.
- Direct OEM Fit: Engineered to match factory mounting locations and line fittings for a fast, hassle-free installation.
📊 Technical Specifications & Keyword Reference
| Tính năng | Chi tiết kỹ thuật |
| Mã sản phẩm OEM chính | 1602110A70A |
| Focus Component | Clutch Master Cylinder Assembly |
| Khả năng tương thích với các loại xe | FAW J6, FAW J6P |
| Product Function | Hydraulic Transmission Control & Fluid Activation |
| Quality Level | Original Equipment Manufacturer (OEM) Standard |
| Wholesale Support | +86 186 7197 8898 |

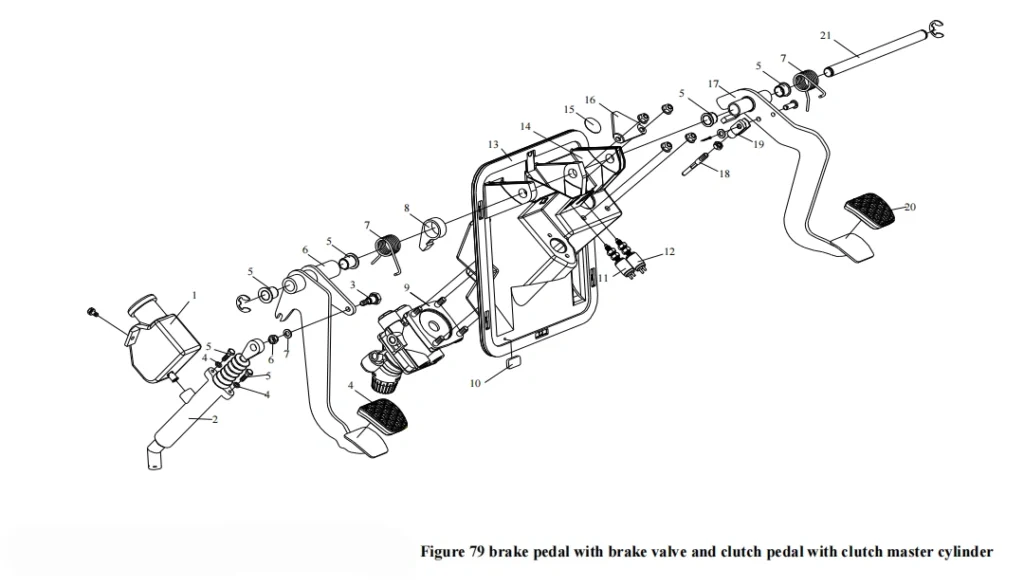

| S/N | Mã sản phẩm | Tên bộ phận | Số lượng |
| 1 | 1602100-50A CQ1460620 | Oil cup assembly (pattern diagram) Combination bolt | 1 1 |
| 2 | 1602110A70A Q40305 CQ1740616 | Clutch master cylinder assembly (pattern diagram) Spring washer Hexagon head with slot bolt | 1 2 2 |
| 3 | 1602091-50A CQ34008 Q40308 | Shaft – master pump Hexagon nut Spring washer | 1 1 1 |
| 4 | 1602037-50A | Pedal sleeve | 1 |
| 5 | 3504061-50A | Bushing – brake pedal shaft | 4 |
| 6 | 1602020-50A | Clutch pedal assembly | 1 |
| 7 | 3504036-50A | Retracing spring – brake pedal | 2 |
| 8 | 1602027-50A | Swing arm-clutch exhaust brake switch | 1 |
| 9 | 3514010-50A CQ32608 | Brake valve and pipe joint assembly Hexagon head flange lock nut | 1 4 |
| 10 | 1602092-50A | Pedal limit block | 1 |
| 11 | 3754030-A01 | Clutch switch assembly | 1 |
| 12 | 3720010-A01 | Stop lamp switch assembly | 1 |
| 13 | 3504033-50A | Gasket – pedal assembly | 1 |
| 14 | 3504031-50A | Pedal bracket | 1 |
| 15 | 3504038-50A | Pad-brake pedal arm | 1 |
| 16 | 3504037-50A | Pad-brake pedal arm | 1 |
| 17 | 3504070-50A | Brake pedal assembly | 1 |
| 18 | 3504063-50A CQ34008 | knockout pin Hexagon nut | 1 |
| 19 | 3504062-50A Q5002016 Q40108 Q5100825 | Thread fork – brake pedal Cotter pin Washer Flat head pin | 1 1 1 1 |
| 20 | 3504074-50A | Pedal sleeve | 1 |
| 21 | 3504032-50A Q436150 3504020-76W/C | Pedal shaft Snap ring Brake Pedal&Clutch Pedal | 1 2 |
❓ Frequently Asked Questions (Technical & Buying Guide)
Q: What is the main function of the 1602110A70A clutch master cylinder assembly?
A: It creates and pushes hydraulic fluid through the system when you press the clutch pedal, allowing the transmission to disengage smoothly.
Q: What are the common signs of a failing clutch master cylinder?
A: Common signs include a spongy or sinking clutch pedal, fluid leaks around the footwell or cylinder body, and difficulty shifting gears.
Q: How do I verify that part number 1602110A70A fits my truck?
A: You can check your parts catalog or send your FAW truck chassis VIN and transmission model to our technical support team via WhatsApp at +86 186 7197 8898 for instant confirmation.
🤝 Global Wholesale & Export Enquiries
We export genuine FAW heavy-duty engine, transmission, and commercial truck parts to fleet managers, repair shops, and auto parts distributors worldwide. Contact us today for competitive bulk pricing and fast international shipping.
