▌Product Overview

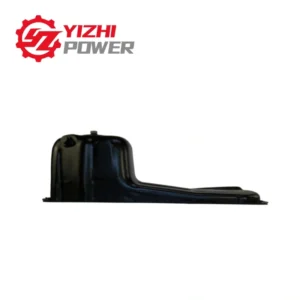

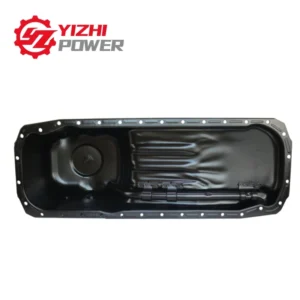

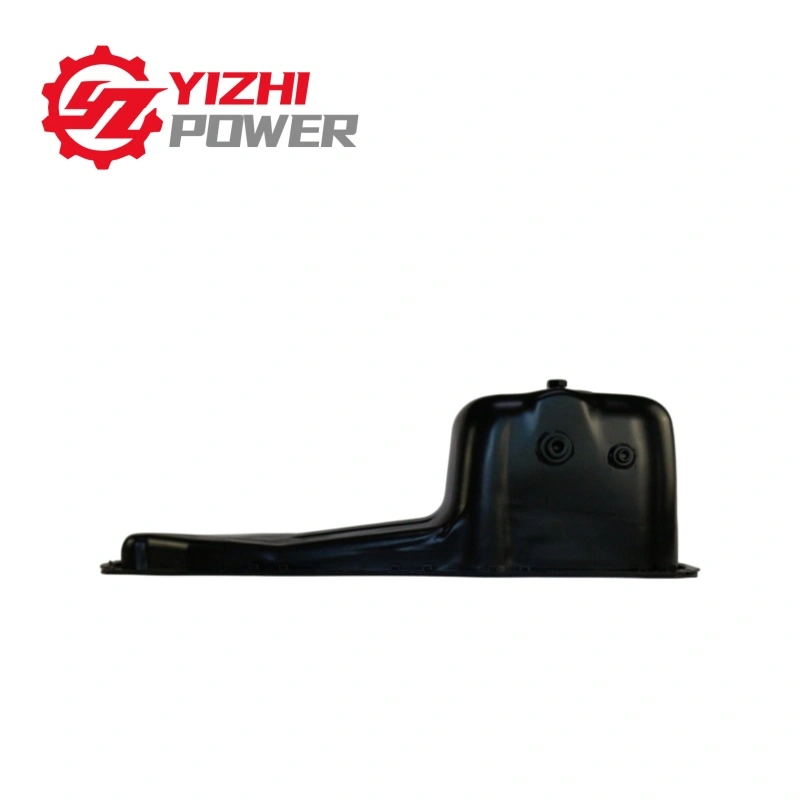

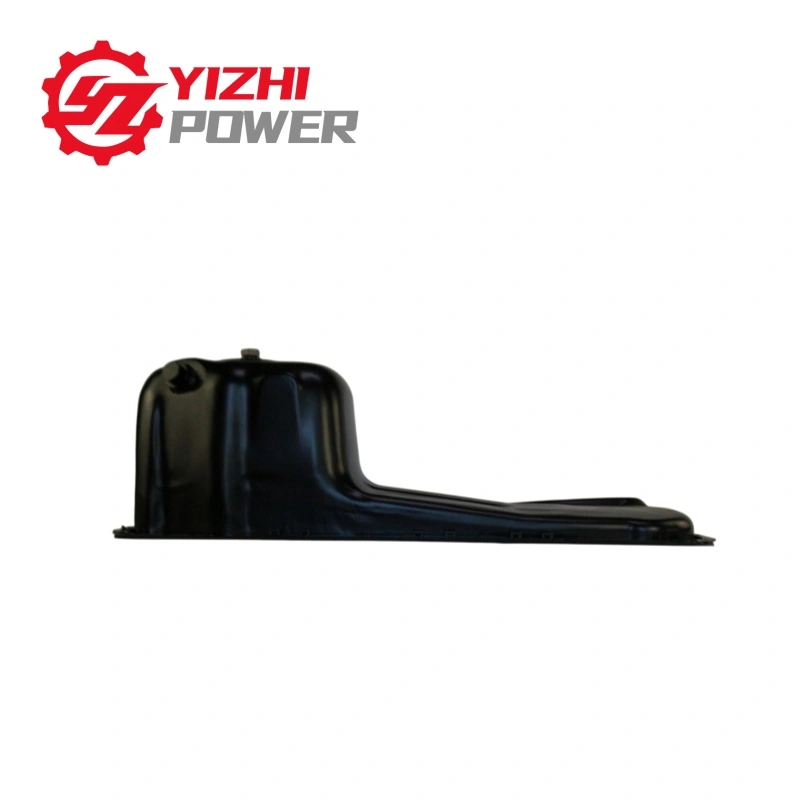

The Cummins M11 Oil Pan 4952770 is the lower oil reservoir used in the lubrication system of Cummins M11 diesel engines. It holds engine oil and works with the oil pickup and lubrication components to support continuous oil circulation during engine operation.
For M11 engine repair or replacement, the 4952770 oil pan should be matched with the original part number and engine information. YIZHI POWER can assist B2B buyers with part-number verification and sourcing requirements for Cummins M11 engine components.
▌Technical Specifications & Keyword Reference

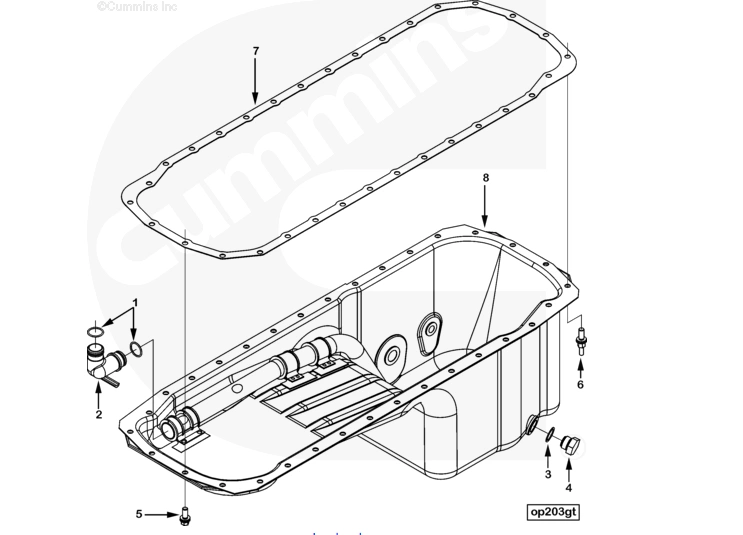

| Cart | Ref No | Part Number | Part Description | Required | Remarks |
| OP2530-03 | Oil Pan | ||||
| Oil Pan | |||||
| 1 | 3032787 | O-Ring Seal | 2 | ||
| 2 | 3882346 | Lubricating Oil Transfer Tube | 1 | ||
| 3 | 67946 | Plain Washer | 1 | 1 1/32 in. | |
| 4 | 3055069 | Threaded Plug | 1 | 1 – 18 UNS. | |
| 4952187 | 1 | ||||
| 5 | 3896723 | Hexagon Flange Head Cap Screw | 25 | ||
| 6 | 3104701 | Studded Captive Washer Screw | 7 | ||
| 7 | 3401290 | Oil Pan Gasket | 1 | ||
| 8 | 4952770 | Pan , Oil Top Level Assembly | 1 |
▌Function of the Cummins M11 Oil Pan
The oil pan is mounted at the bottom of the engine and serves as the main reservoir for engine oil. During operation, oil drains back into the pan after passing through the engine lubrication system, where it can be collected and returned to circulation.
A damaged oil pan may result from impact, corrosion, deformation, or sealing problems and can contribute to engine oil leakage. Replacing a damaged component with the correct Cummins M11 Oil Pan 4952770 helps restore the intended oil-reservoir arrangement.
▌Applications
The Cummins M11 Oil Pan 4952770 is suitable for applications including:
- Cummins M11 diesel engine maintenance
- Cummins M11 engine repair
- M11 oil pan replacement
- Engine lubrication system maintenance
- Diesel engine oil leakage repair
- Cummins M11 engine component replacement
The exact application should be confirmed using the original part number and engine identification information before ordering.
▌Key Features
- OEM Part Number: 4952770
- Engine Compatibility: Cummins M11
- Engine Displacement: 11L
- Component Type: Engine Oil Pan
- System: Engine Lubrication System
- Application: Engine Maintenance & Replacement
- Condition: Brand New
▌Need Cummins M11 Oil Pan 4952770?
▌FAQ
Q1: What is Cummins M11 Oil Pan 4952770?
A1: Cummins M11 Oil Pan 4952770 is an engine oil pan used in applicable Cummins M11 diesel engine lubrication systems.
Q2: What is the function of the M11 oil pan?
A2: The oil pan serves as the lower oil reservoir of the engine, collecting engine oil before it is returned to the lubrication system for circulation.
Q3: How can I confirm that 4952770 is the correct oil pan for my M11 engine?
A3: Check the original oil pan part number and Cummins M11 engine information. The engine serial number can also help with compatibility verification.
Q4: When should a Cummins M11 oil pan be replaced?
A4: Replacement may be necessary if the oil pan is cracked, deformed, corroded, or damaged around the sealing area and cannot reliably retain engine oil.
Q5: Is Cummins M11 Oil Pan 4952770 brand new?
A5: Yes. This product is supplied as a brand-new oil pan for applicable Cummins M11 engine maintenance and replacement applications.
