▌Product Overview
The Cummins K50 Oil Pan 3087562 is a lower engine component installed in the lubrication system of Cummins K50 diesel engines. It serves as the oil reservoir and works with related lubrication components to support proper engine oil circulation.
Part number 3087562 is also associated with common reference number 3088853, which can be used for part identification and replacement verification. YIZHI POWER supplies brand-new Cummins K50 engine parts for distributors, repair shops, and commercial engine maintenance applications.

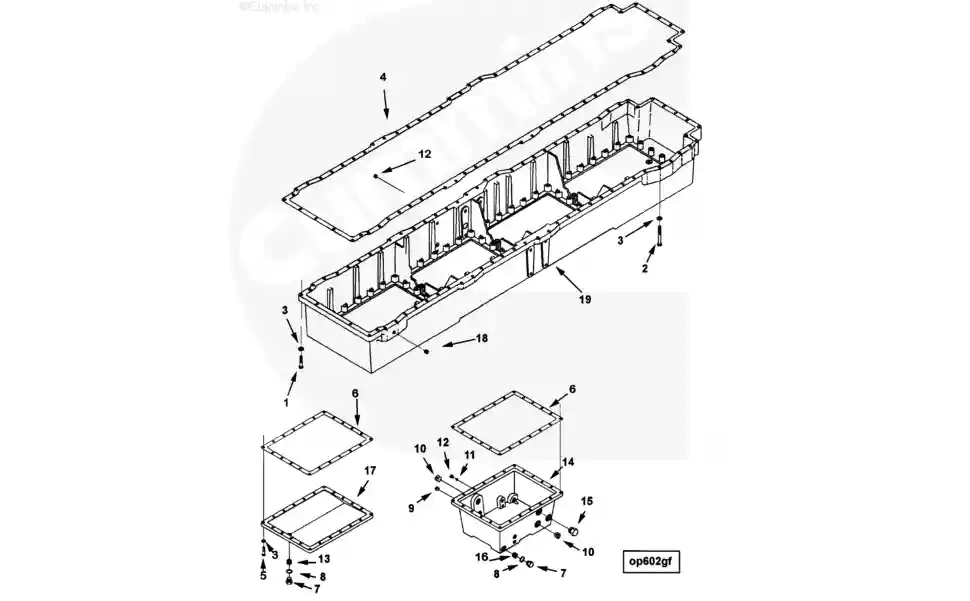

▌Technical Specifications & Keyword Reference
| Cart | Ref No | Part Number | Part Description | Required |
| OP6017-05 | Oil Pan | |||
| 1 | 106069 | Hexagon Head Cap Screw | 46 | 7/16 – 14 X 2 in. |
| 2 | 108767 | Hexagon Head Cap Screw | 28 | 7/16 – 14 X 3 1/2 in. |
| 3 | 3000082 | Plain Washer | 118 | 15/32 in. |
| 4 | 3043213 | Oil Pan Gasket | 1 | |
| 5 | S 140 | Hexagon Head Cap Screw | 88 | 7/16 – 14 x 1 3/4 in. |
| 6 | 3043211 | Oil Pan Gasket | 4 | |
| 7 | 3055069 | Threaded Plug | 3 | 1 – 18 UNS. |
| 8 | 67946 | Plain Washer | 3 | 1 1/32 in. |
| 9 | 3628606 | Pipe Plug | 3 | 1/2 – 14. |
| 10 | 3628608 | Pipe Plug | 4 | |
| 3630550 | Oil Pan | 1 | ||
| 3037536 | Threaded Plug | 2 | 9/16 – 18 UNF | |
| 11 | 3037537 | O-Ring Seal | 1 | |
| 12 | 3040813 | Threaded Plug | 1 | 9/16 – 18 UNF |
| 3087562 | Oil Pan | 1 | ||
| 13 | 200845 | Threaded Insert | 2 | |
| 14 | 3630256 | Oil Pan | 1 | |
| 15 | 3032629 | Threaded Plug | 1 | 1 5/16 – 12 UNF. |
| 3028696 | Oil Pan Cover | 3 | ||
| 16 | 200845 | Threaded Insert | 1 | |
| 17 | 206099 | Oil Pan Cover | 1 | |
| 3630044 | Oil Pan Adapter | 1 | ||
| 18 | 3628609 | Pipe Plug | 1 | 3/8-18. |
| 19 | 3635804 | Oil Pan Adapter | 1 |
▌Function of the Oil Pan
The Oil Pan 3087562 is an important part of the engine lubrication system. It provides a storage area for engine oil and helps maintain the oil supply required by the lubrication system.
During engine operation, the oil pan works together with the oil pump and other lubrication components to support continuous oil circulation and lubrication of internal engine parts.
▌Applications
The Cummins K50 Oil Pan 3087562 is suitable for applications including:
- Cummins K50 engine parts
- Cummins K Series diesel engine maintenance
- Engine lubrication system repair
- Oil pan replacement
- Heavy-duty diesel engine overhaul
- Industrial engine service applications
▌Key Features
- Part Number: 3087562
- Common Reference Number: 3088853
- Original Description: OIL PAN
- Engine: Cummins K50
- Engine Displacement: 50L
- Component: Oil Pan
- System: Engine Lubrication System
- Condition: Brand New
- Suitable for Cummins engine repair and maintenance applications
- Supplied by YIZHI POWER for international B2B buyers
▌Need Cummins K50 Oil Pan 3087562?
▌FAQ
Q1: What is Cummins K50 Oil Pan 3087562 used for?
A1: The Cummins K50 Oil Pan 3087562 is an engine lubrication component used to store engine oil and support the lubrication system of Cummins K50 diesel engines.
Q2: Is Cummins 3087562 the same as 3088853?
A2: Part number 3088853 is a common reference number associated with Cummins K50 Oil Pan 3087562. The correct replacement should be confirmed according to the engine application and part information.
Q3: What engine does Cummins Oil Pan 3087562 fit?
A3: The 3087562 Oil Pan is associated with Cummins K50 diesel engine applications.
Q4: Is Cummins K50 Oil Pan 3087562 brand new?
A4: Yes. YIZHI POWER supplies the 3087562 Oil Pan as a brand-new Cummins engine component.
Q5: Can YIZHI POWER supply Cummins K50 Oil Pan 3087562 in bulk?
A5: Yes. YIZHI POWER supports B2B supply for Cummins engine parts. Contact us with your required quantity and shipping details for a quotation.
