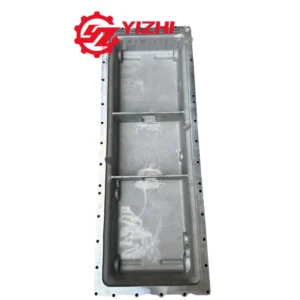

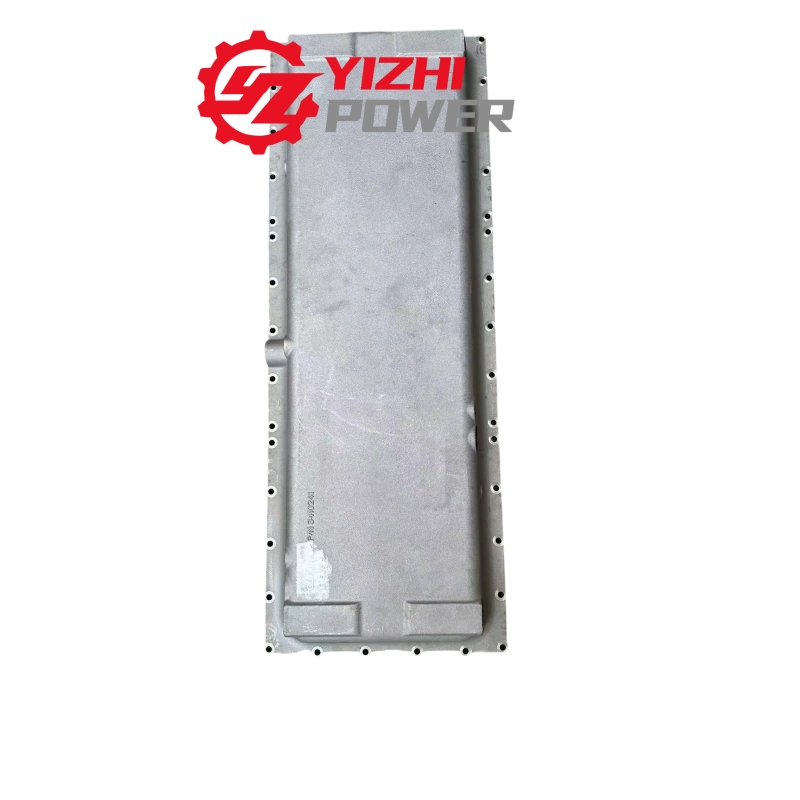

▌Product Overview
The Cummins K19 Oil Pan 3410241 is positioned at the lower section of the engine and forms part of the engine lubrication system. It provides a reservoir for engine oil and works with other lubrication components to support proper oil circulation during engine operation.
For K19 engine repair or replacement projects, matching the oil pan by the correct Cummins part number is important. YIZHI POWER supplies brand-new Cummins engine components for international B2B customers and can assist with part-number verification before quotation.
▌Technical Specifications & Keyword Reference

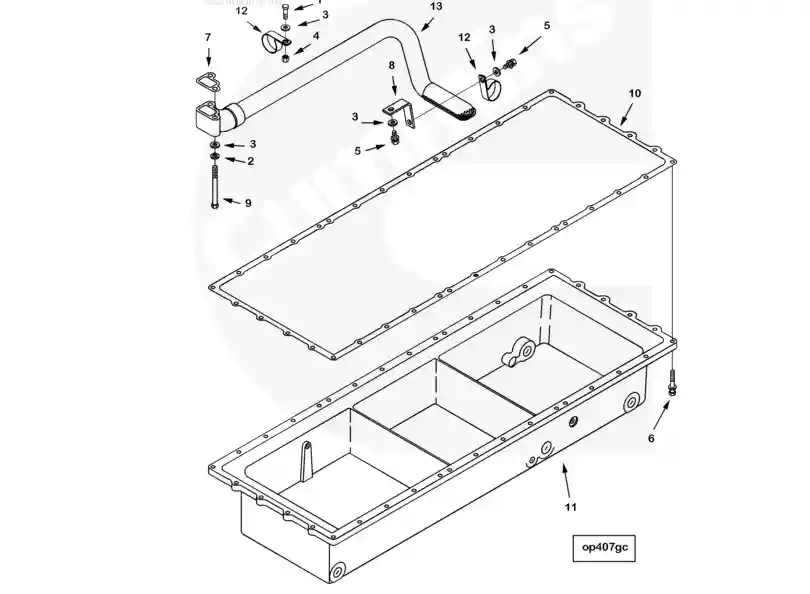

| Cart | Ref No | Part Number | Part Description | Required |
| OP4076 | Oil Pan | |||
| 1 | S 194 | Hexagon Head Cap Screw | 1 | 3/8 – 24 x 1 1/4 in. |
| 2 | S 610 | Lock Washer | 2 | 7/16 in. |
| 3 | 108330 | Plain Washer | 5 | 3/8 in. |
| 4 | 129069 | Lock Nut | 1 | 3/8 – 24 UNF. |
| 5 | 3010595 | Captive Washer Cap Screw | 2 | 3/8 – 16 X 1 in. |
| 6 | 3068533 | Captive Washer Cap Screw | 38 | 3/8 – 16 X 2 1/2 in |
| 7 | 3079754 | Oil Suction Connection Gasket | 1 | |
| 8 | 3081817 | Tube Brace | 1 | |
| 9 | 3085752 | Hexagon Head Cap Screw | 2 | 7/16 – 14 x 4.5 |
| 10 | 3085778 | Oil Pan Gasket | 1 | |
| 11 | 3410241 | Oil Pan | 1 | |
| 12 | 3086144 | Clip | 2 | |
| 13 | 3086207 | Lubricating Oil Suction Tube | 1 |
▌Function of the Cummins K19 Oil Pan
The Oil Pan 3410241 serves as the lower oil reservoir for the Cummins K19 engine. It holds engine oil within the lower engine assembly and supports the lubrication system by providing the oil supply point for continued circulation through the engine.
A properly matched oil pan is important when replacing damaged or worn components during K19 engine repair or overhaul work.
▌Applications
- Cummins K19 diesel engines
- Cummins K19 engine repair
- Cummins K19 lubrication system maintenance
- Engine oil pan replacement
- Cummins engine overhaul and maintenance
- Heavy-duty and industrial engine applications
▌Key Features
- OEM Part Number: 3410241
- Engine Compatibility: Cummins K19
- Component Type: Engine Oil Pan
- System: Engine Lubrication System
- Condition: Brand New
- Application: Engine repair, maintenance and replacement
▌Need Cummins K19 Oil Pan 3410241?
▌FAQ
Q1: How can I confirm that Oil Pan 3410241 is suitable for my K19 engine?
A1: Send us the engine model and existing part number. If available, providing the engine serial number (ESN) can also help with compatibility verification.
Q2: Is Cummins K19 Oil Pan 3410241 brand new?
A2: Yes. This product is supplied as a brand-new engine component for K19 repair, maintenance, and replacement applications.
Q3: Can you provide product photos before I place an order?
A3: Yes. Product photos and available technical information can be provided for part-number and product verification before ordering.
Q4: What information should I provide when requesting a quote?
A4: Please provide the part number, required quantity, destination country, and preferred shipping method. Engine information is also helpful for verification.
Q5: Can you arrange international shipping for 3410241 Oil Pan?
A5: Yes. YIZHI POWER supports international B2B orders and can check suitable shipping options according to the destination and order quantity.
