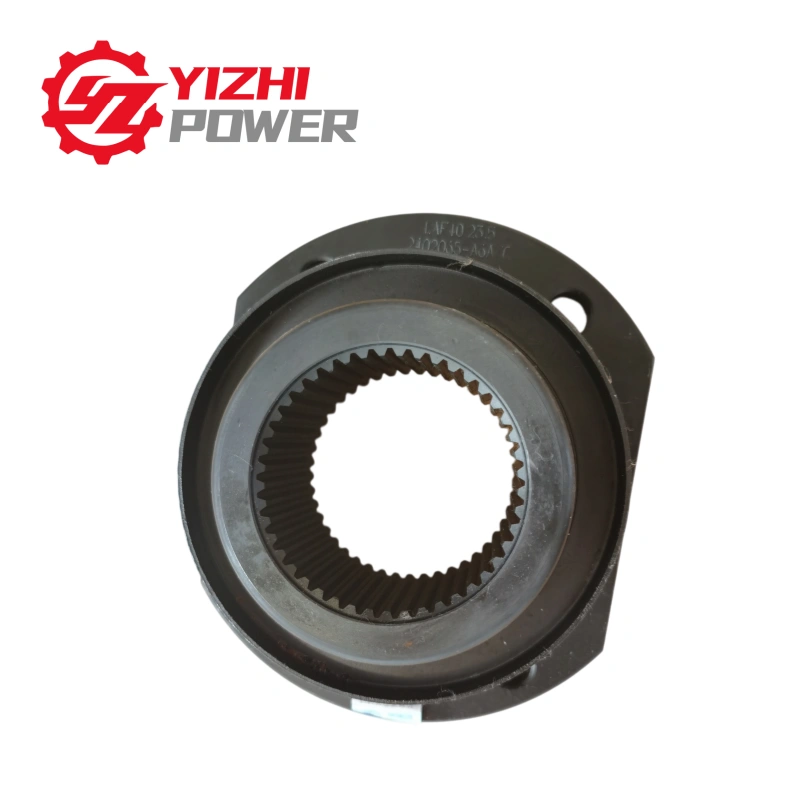

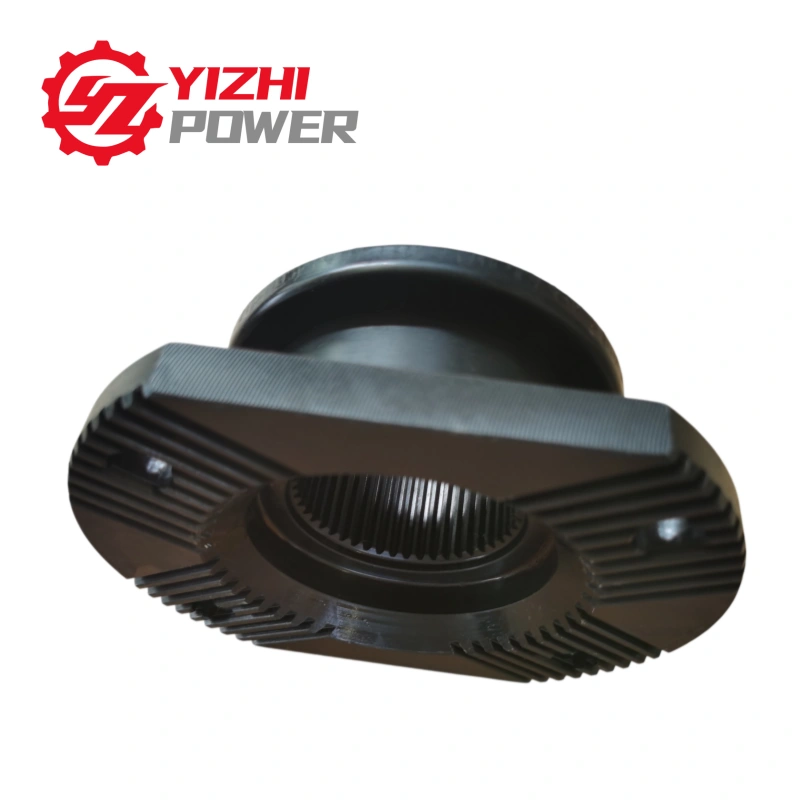

The FAW 2402065-A6A flange-driving bevel gear is an essential drivetrain component built for FAW commercial heavy-duty trucks. Manufactured under original OEM specifications, this genuine flange links your transmission drive shaft to the rear axle differential, ensuring reliable power delivery across long-haul trips.
⚙️ Reliable Power Transfer for Heavy-Duty Diesels
Maintaining a secure and stable connection between the drive shaft and axle is vital to preventing power loss and mechanical vibration. The 2402065-A6A flange-driving bevel gear delivers dependable performance:
- High-Strength Forged Steel: Rugged metal construction resists cracking, wear, and spline stripping under heavy acceleration and towing loads.
- Precision Spline Alignment: Accurate internal splines fit tightly onto the bevel gear shaft to eliminate play and backlash.
- Direct OEM Fit: Engineered to match factory bolt patterns and drive shaft yokes for a fast, hassle-free installation.
📊 Technical Specifications & Keyword Reference
| תכונה | פרטים טכניים |
| מספר חלק מקורי של היצרן (OEM) | 2402065-A6A |
| רכיב המיקוד | Flange-Driving Bevel Gear |
| תאימות לרכבים | FAW J6, FAW J6P |
| פונקציית המוצר | Drive Shaft Coupling & Axle Torque Transmission |
| רמת איכות | תקן יצרני ציוד מקורי (OEM) |
| תמיכה בסיטונאות | +86 186 7197 8898 |
| מס' סידורי | מספר קטלוגי | Part Name | כמות |
|---|---|---|---|
| — | 2400010A51C/C | Rear axle assembly (io=4.111) | 1 |
| — | 2402010FB4A/C | Reducer and differential assembly (io=4.111) | 1 |
| 1 | 2401010B51C/A | Rear axle housing assembly | 1 |
| 2 | T905 | Breather plug | 1 |
| 3 | T62104M | Hexagon socket taper magnetic screw plug | 1 |
| 4 | CQ72324T5 | Packing washer | 1 |
| 5 | 2401051-A0R | Oil filler plug | 1 |
| 6 | 2402023-A6A/B | Bolt-tightening differential bearing cover | 4 |
| A | 2402015UA5A/C | Main reducer housing assembly | 1 |
| 7 | 2402019-A6A | Bearing cap – differential bearing | 2 |
| 8 | 2402018UA5A/D | Reducer housing | 1 |
| 9 | 2402016D1H | Bolt for tightening reducer | 10 |
| 10 | 2402017-A6A | Bolt for tightening reducer | 6 |
| 11 | 2402094-A6A | Adjusting gasket – driving bevel gear bearing seat (t=0.1) | As required |
| 2402096-A6A | Adjusting gasket – driving bevel gear bearing seat (t=0.2) | As required | |
| 2402097-A6A | Adjusting gasket – driving bevel gear bearing seat (t=0.5) | As required | |
| 12 | 2402075-B4A-C00/A | Cylindrical roller bearing assembly | 1 |
| 13 | 2402036DA6A/C | Driving bevel gear | 1 |
| 14 | 2402060-A6A-C00/C | Tapered roller bearing assembly | 1 |
| 15 | 2402026-A6A | Bearing seat – driving bevel gear | 1 |
| 16 | 2402091-A6A | Spacing sleeve – driving bevel gear bearing | 1 |
| 17 | 2402081-A0E/B | Adjusting washer – driving bevel gear bearing | 1 |
| 18 | 2402050-A6A-C00/D | Tapered roller bearing assembly | 1 |
| 19 | 2402055-B4A-C00/A | Driving bevel gear oil seal assembly | 1 |
| 20 | 2402067-A0E/A | Rear axle input flange dust shield | 1 |
| 21 | 2402065-A6A | Flange – driving bevel gear | 1 |
| 22 | 2402077-A6A | O-ring – driving bevel gear flange | 1 |
| 23 | 2402069-A0E/CL1 | Nut – driving bevel gear flange | 1 |
| 24 | 2402017-1H | Bolt – tightening reducer | 8 |
| 25 | 2402088-A4R/B | Bolt – driven bevel gear | 16 |
| 26 | 2402037DA6A/C | Driven bevel gear | 1 |
| B | 2403015AB4A/A | Differential housing assembly (matching part) | 1 |
| 27 | 2403017AB4A/A | Carrier differential (LH) | 1 |
| 28 | 2403018-B4A/A | Carrier differential (RH) | 1 |
| 29 | CQ33320 | Type 2 all metal hexagonal self-lock nut | 16 |
| 30 | 2402023-A0E/D | Bolt – tightening differential bearing cap | 12 |
| 31 | 2403070-A6T-C00/C | Tapered roller bearing assembly | 2 |
| 32 | CQ1421020 | Combination bolt | 4 |
| 33 | 2403072-1H/B | Lock plate – adjusting ring | 2 |
| 34 | 2403071-A4R/C | Adjusting ring – differential bearing | 2 |
| 35 | 2403053-A6A/C | Gasket – axle shaft gear | 2 |
| 36 | 2403051-A6A/B | Half shaft gear | 2 |
| 37 | 2403058-A6A/B | Washer – planetary gear | 4 |
| 38 | 2403056-A6A/C | Planetary gear | 4 |
| 39 | 2403061-A6A/C | Spider – differential | 1 |
| 40 | 2403081CA6A/A | Half axle | 1 |
| 41 | 2403083-1H | Axle shaft bolt | 20 |
| 42 | 2403082AA6A/B | Half axle | 1 |
| 43 | 2406032-B4A/A | Moving sleeve – inter-wheel differential lock | 1 |
| 44 | 3834090UA5A/A | Differential lock indicator lamp switch assembly | 1 |
| 45 | 2406028-A0E | Retracting spring – inter-wheel differential lock | 1 |
| 46 | 2406024UA5A/A | Yoke | 1 |
| 47 | 2406026UA5A | Fork shaft – differential lock | 1 |
| 48 | Q2821222 | Flat end set screw | 1 |
| 49 | CQ35212 | Thin hexagon jam nut | 1 |
| 50 | 2406014-A0E | O-ring – differential lock piston | 1 |
| 51 | 2406013-A0E | Piston – inter-wheel differential lock | 1 |
| 52 | 2406019-B4A/A | Gasket – cylinder | 1 |
| 53 | 2406015-B4A/A | Inter-wheel differential lock cylinder and bushing assembly | 1 |
| 54 | 2406017-A0E/C | Gasket – cylinder head | 1 |
| 55 | 2406016-A0E | Head – cylinder | 1 |
| 56 | 2406018-A0E | Bolt – tightening inter-wheel differential lock cylinder head | 3 |
| 57 | 2406099UA5A/A | Adjusting bolt | 1 |
| 58 | CQ35316 | Thin hexagon jam nut | 1 |
| 59 | CQ63505 | End-type elbow joint – conical tube joint coupling | 1 |
| 60 | Q5280512 | Elastic cylindrical pin | 2 |
❓ Frequently Asked Questions (Technical & Buying Guide)
Q: What is the main function of the 2402065-A6A flange-driving bevel gear?
ת: It connects the drive shaft to the rear axle’s driving bevel gear, acting as the joint that transfers rotational power from the engine to the differential.
Q: What are the common signs of a failing drive flange?
ת: Common signs include clunking noises when shifting into gear, excessive driveline vibration, or worn/stripped splines on the shaft connection.
Q: How do I verify that part number 2402065-A6A fits my truck?
ת: You can check your parts catalog or send your FAW truck chassis VIN and axle model number to our technical support team via WhatsApp at +86 186 7197 8898 לקבלת אישור מיידי.
🤝 Global Wholesale & Export Enquiries
We export genuine FAW heavy-duty drivetrain, axle, and commercial truck parts to fleet managers, repair shops, and auto parts distributors worldwide. Contact us today for competitive bulk pricing and fast international shipping.
