Cummins 6BT Leads the Development of Engine Powertrain Systems
CUMMINS 6BT: The Timeless Workhorse of Diesel Power
A Legacy of Reliability Across Industries
Since its 1980s launch, CUMMINS 6BT has set the bar for diesel engine durability. This 5.9-liter turbocharged engine was built for heavy work. For 40 years, it has excelled on construction sites, farms, boats, and commercial trucks. Its simple, tough design—cast-iron block, mechanical fuel injection, seven main bearings—cuts down on electronic issues. It’s easy to maintain, even in remote areas. Whether powering an excavator or a ship, it delivers steady power without losing longevity.
Versatility Across Key Industries
Since its early days, CUMMINS 6BT has spread to many fields. In agriculture, it runs tractors and harvesters. It provides the low-end torque needed for plowing and harvesting. In marine use, its variants offer 104–150 hp (78–112 kW). They have water-cooled exhausts and keel cooling for saltwater. It’s also popular in medium-duty trucks and emergency gear like fire pumps. It starts fast and performs well under heavy loads. Even today, fleet managers and operators choose it for minimal downtime.
Evolution Without Losing Core Strengths
CUMMINS 6BT stays true to its roots while adapting. CUMMINS 6BT avoids complex electronics for simple repairs. CUMMINS 6BT keeps maintenance costs low. CUMMINS 6BT saves fuel—using 6–8 gallons per hour under heavy use. CUMMINS 6BT meets modern emission rules with better turbochargers. CUMMINS 6BT uses precision fuel injectors to cut emissions. CUMMINS 6BT retains its strong performance through these updates. Backed by Cummins’ global service and warranties, it offers support worldwide.
Longevity That Saves Money
CUMMINS 6BT earns loyalty for its long life. With basic care, many units hit 500,000 miles (800,000 km) or 15,000 hours. Its tough build makes this possible. This durability lowers total ownership costs. Businesses spend less on replacements and fixes. OEM parts and remanufactured engines keep older units running. It extends their service life for years.
Why CUMMINS 6BT Remains a Top Choice
In a fast-changing tech world, CUMMINS 6BT is still trusted. It prioritizes reliability, versatility, and value. It adapts to industry needs without changing its core design. It’s more than an engine—it’s a partner for global progress. For anyone needing a diesel engine that handles tough tasks, CUMMINS 6BT is the gold standard.

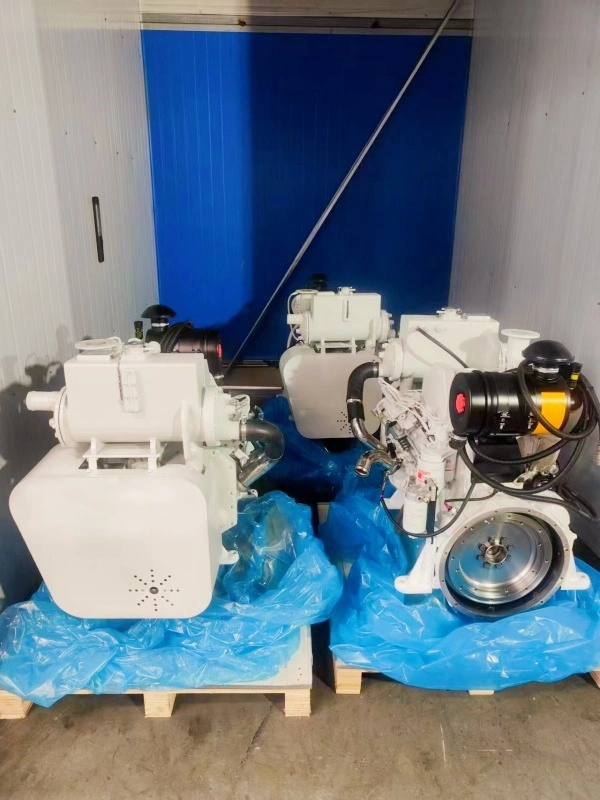

- CUMMINS 6BT in the marine sector

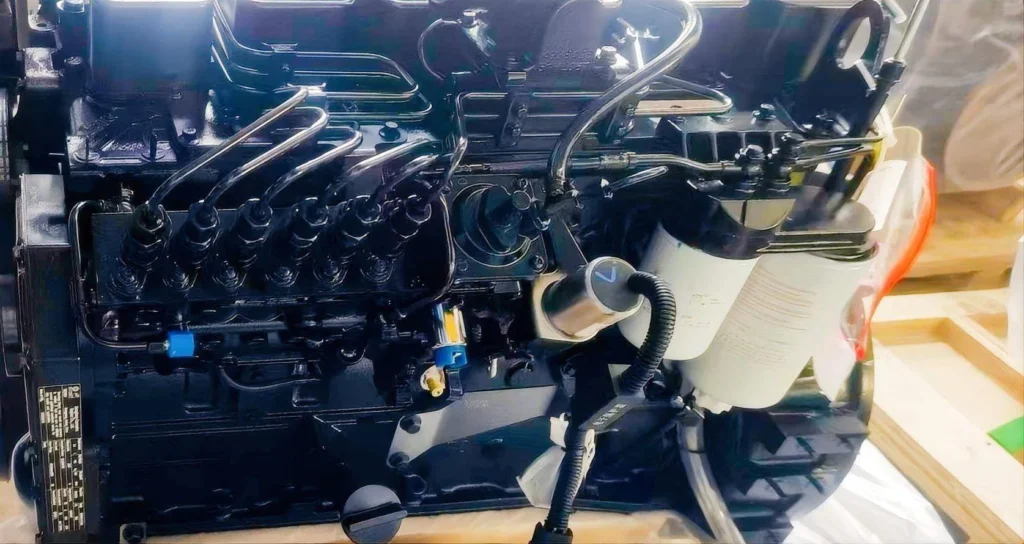

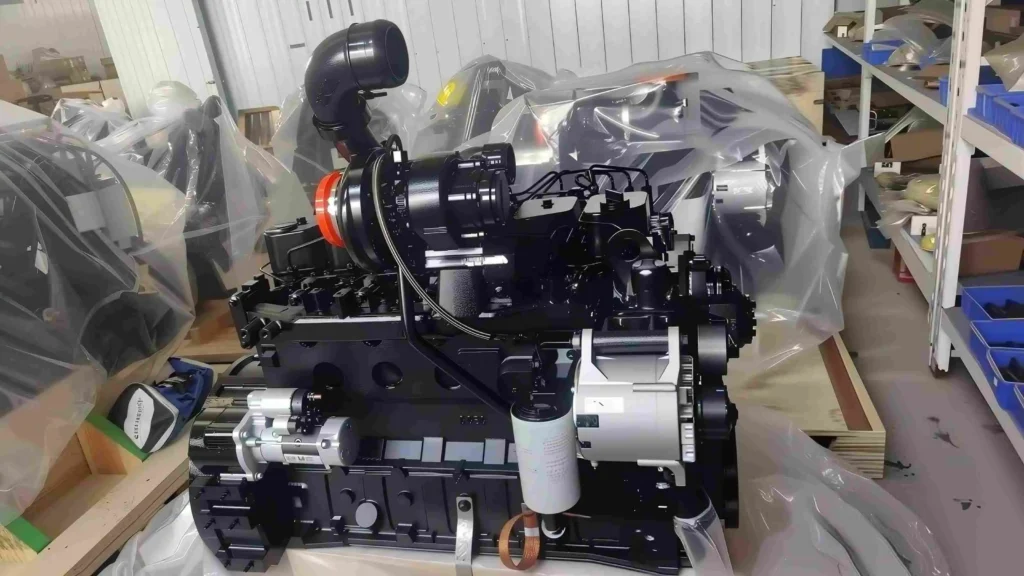

- CUMMINS 6BT in the field of construction machinery

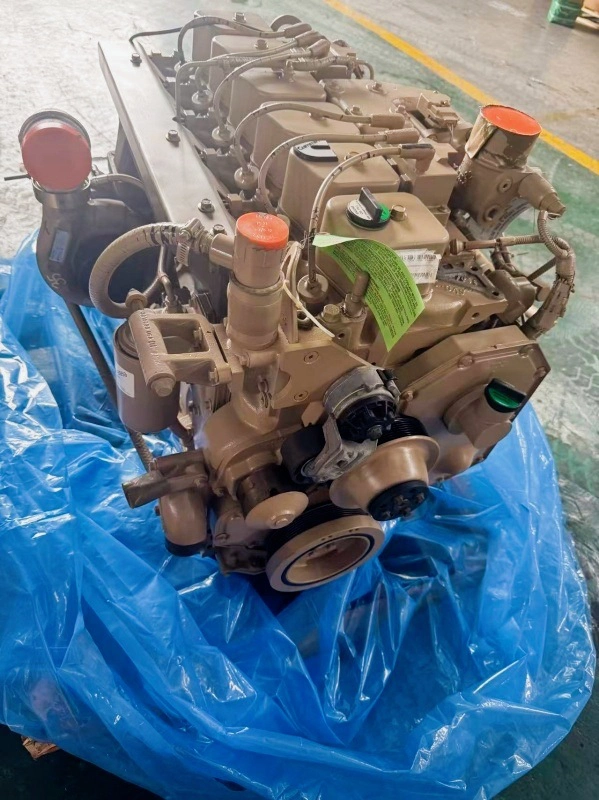

- CUMMINS 6BT natural gas sector

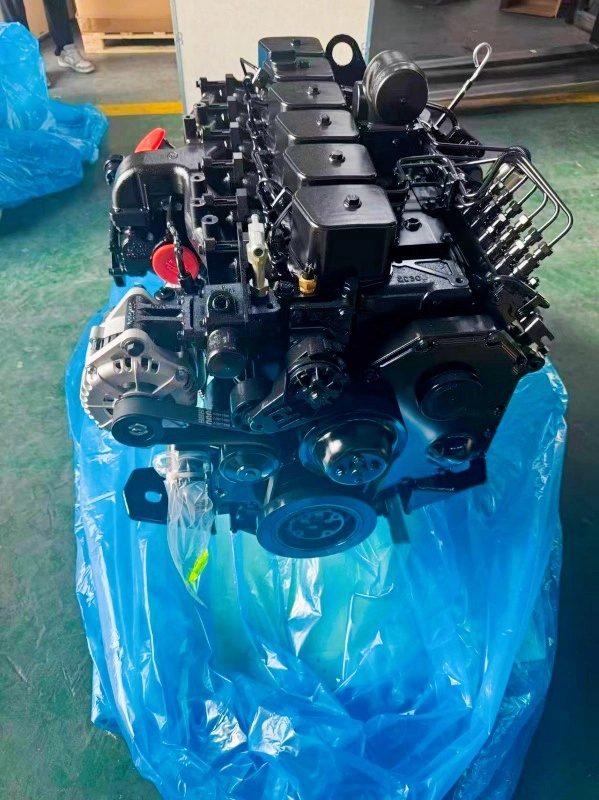

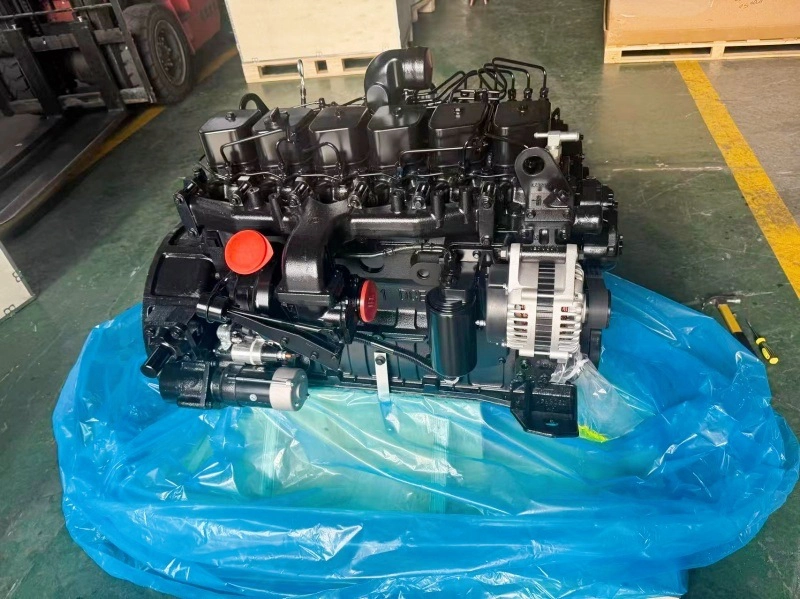

- CUMMINS 6BT commercial vehicle sector.


CUMMINS -6BT—— A powertrain with outstanding performance.
| CUMMINS 6BT Coolpac/engine) Type | CUMMINS 6BT Engine Power | CUMMINS 6BT Gen-set Power | Displacement | Governer | ||||
| 1500rpm/1800rpm | 50Hz/60Hz | |||||||
Prime | Standby | Prime | Standby | |||||
| kWm | kWm | kWe | KVA | kWe | KVA | |||
| CUMMINS 6BT-G75M1/6BT5.9-G1 | 86/Na | 92/Na | 75/Na | 94/Na | 82/Na | 103/Na | 5.9L | Mechanical |
| CUMMINS 6BT-G75E1/6BT5.9-G2 | 86/100 | 92/110 | 75/84 | 94/105 | 82/92 | 103/115 | Electronic | |
| CUMMINS 6BT-G84E1/6BT5.9-G2 | 96/115 | 106/127 | 84/100 | 105/125 | 92/110 | 115/138 | ||
| CUMMINS 6BT General Engine Data | |
| CUMMINS 6BT——Engine Type | In-Line,6Cylinders,4Cycle Diesel Engine |
| CUMMINS 6BT——Bore | 102mm |
| CUMMINS 6BT——Stroke | 120mm |
| CUMMINS 6BT——Displacement | 5.9L |
| CUMMINS 6BT——Compression Ration | 17.3:1 |
| CUMMINS 6BT——Governor Regulation | Mechanical Governor≤8% |
| Electrical Governor≤3% | |
| ECM≤1% | |
| CUMMINS 6BT——Electrical System | 24V |
| CUMMINS 6BT——Fuel system | HPCR |
| CUMMINS 6BT——Lube Capacity | 16.4L |
| CUMMINS 6BT——LubeOilType | Higher Than 15W40-CH4 |
| CUMMINS 6BT——Flywheel | SAE 3#11.5 |
| CUMMINS 6BT Coolpac Performance Data | |
| CUMMINS 6BT——Cooling System Design | Positive Water Cooling Cycle |
| CUMMINS 6BT——Coolant Type | Organic Long Lasting Coolant |
| CUMMINS 6BT——Coolant Capacity | 22.4~35.3L |
| CUMMINS 6BT——Limiting Ambient Temp | 40 |
| CUMMINS 6BT——Filter Type | Dry replaceable element with restriction indicator |
| CUMINS 6BT Weight & Dimensions | |||
| CUMMINS 6BT——Dry Weight | Length | Width | Height |
| 586KG | 1485mm | 785mm | 1145mm |
CUMMINS 6BT is an excellent engine.
