Introduction
When it comes to the Cummins ISX15 engine, choosing the right water pump is critical for cooling efficiency and engine longevity. However, with multiple part numbers like CUMMINS ISX15 water pump 3684449, 4089908, 4089909, and 4089911, it’s easy to get confused. In this guide, we break down the key technical differences—from volute housing designs to pulley sizes—to help you identify the exact part you need.

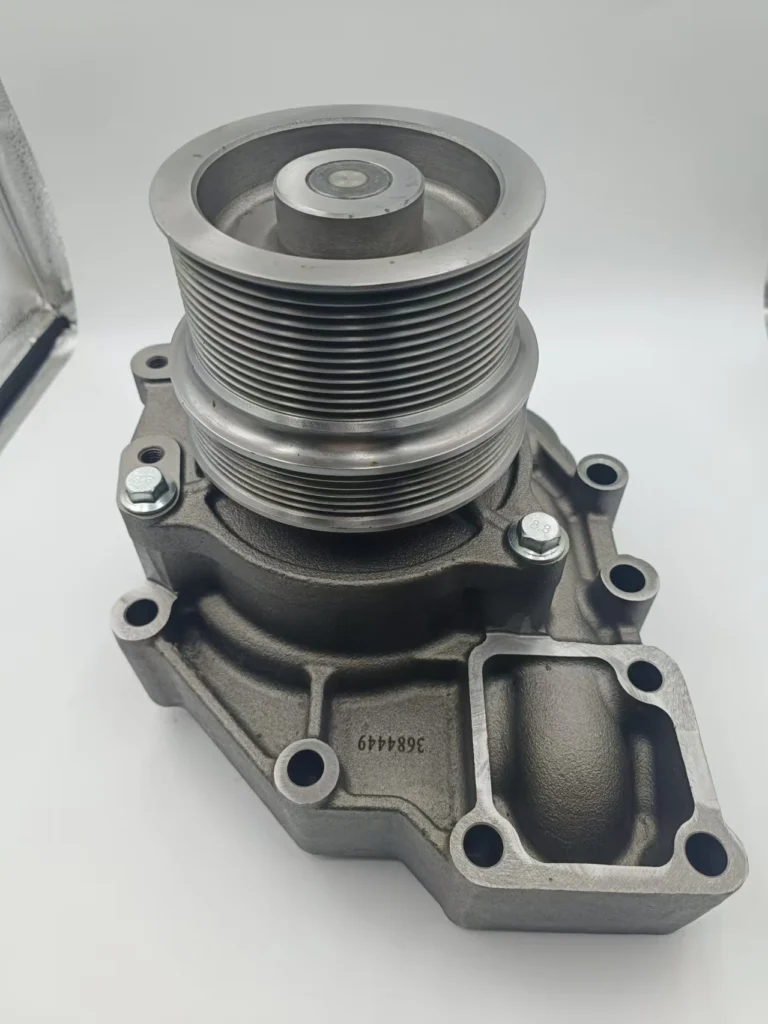

1. Cummins 3684449: The Most Distinct Design
Cummins ISX15 water pump 3684449 is the easiest to identify among the four. Its Water Pump Volute Housing is completely different from the other three models. It is designed for specific ISX15 configurations, and its unique housing shape means it cannot be interchanged with the 4089908 or 4089909 series. If your housing looks significantly different, 3684449 is likely your match.
2. Cummins ISX15 water pump 4089908 vs. 4089909: Integrated vs. Split Housing
These two are often mistaken for each other, but the difference lies in the housing structure:
- 4089908: Features a one-piece (integrated) Water Pump Volute Housing. It is a solid, continuous casting.

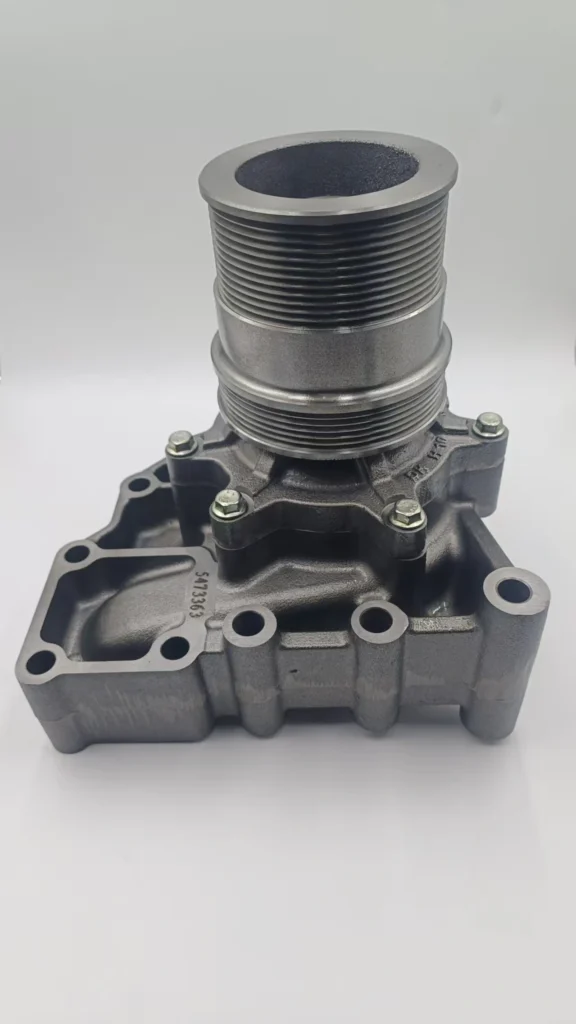

- 4089909: Features a two-piece (split-type) Water Pump Volute Housing.
- Note: In addition to the housing, the pulleys on these two models are also different. Always check the pulley profile before installation.

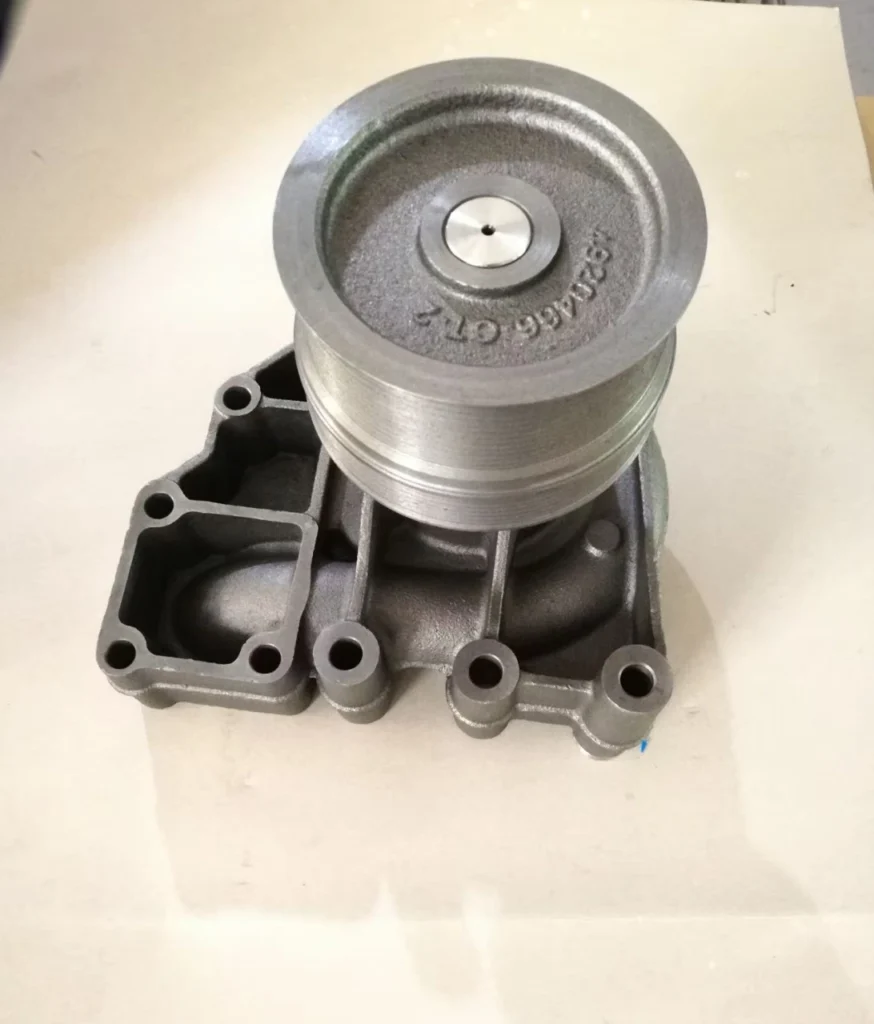

3. Cummins ISX15 water pump 4089911 vs. 4089909: The Pulley Size Trap
At first glance, Cummins ISX15 water pump 4089911 and 4089909 look almost identical. Many technicians realize the difference only when the belt doesn’t fit correctly.
- Key Identification: The pulley on the 4089911 is larger than the pulley on the 4089909.
- Technical Tip: Always measure the pulley diameter or compare them side-by-side. A larger pulley affects the pump’s RPM and belt tension.
Comparison Summary Table
| Part Number | Volute Housing Type | Pulley Feature | Identification Tip |
| 3684449 | Unique Design | Specific Pattern | Completely different housing shape |
| 4089908 | One-piece (Integrated) | Standard | Solid casting, no split lines |
| 4089909 | Two-piece (Split) | Standard | Look for the housing seam/split |
| 4089911 | Two-piece (Split) | Large Diameter | Pulley is larger than 4089909 |
Why Accurate Identification Matters
Installing the wrong water pump on a Cummins ISX15 can lead to improper belt tension, coolant flow issues, or even catastrophic engine overheating. Whether you are dealing with a SOHC or DOHC setup, verifying the housing type and pulley size is the only way to ensure a perfect fit.
